Pneumatic Fifth Wheel Hitch, port truck fifth wheel hitch top plate
Pneumatic Fifth Wheel Hitch diagram
T.22.SP.2" Formed Steel Model Air Release Pneumatic Fifth Wheel Hitch Plate for Standard Duty For Yard Trucks, Spotter Trucks, Terminal Tractors

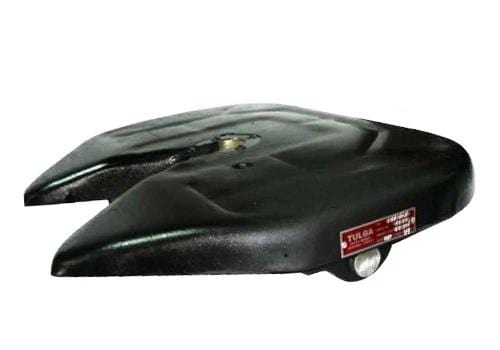

Pneumatic Fifth Wheel Hitch, port truck fifth wheel hitch top plate
Pneumatic Fifth Wheel Hitch diagram

T.22.SP.2" Formed Steel Model Air Release Pneumatic Fifth Wheel Hitch Plate for Standard Duty For Yard Trucks, Spotter Trucks, Terminal Tractors

Save 22% Save 22%
$ 1,899.99
$ 1,899.99 - $ 1,899.99
$ 1,899.99
$ 1,489.95
$ 1,489.95 - $ 1,489.95
$ 1,489.95

30 Day Returns on all orders

You have 30 days to request a return. 3 Years Limited Warranty

Out of Stock Back Ordered (6-8 weeks)

Product Details:

Compatible Trucks: Capacity Trucks, AutoCar, Spotter, Kalmar, Ottowa, Sabre

 Product Sku:  T22-SP2
 Vertical Capacity:  45,000 lbs
 Drawbar Capacity:  145,000 lbs
 D Value:  152 kn
 Weight:  240 lbs
 Note:  Pneumatic Air Cylinders Fifth Wheel for Yard Trucks, Port Tractors, Spotting Tractors.
 Material:  Formed Steel
 Factory Limited Warranty:  Lifetime



Repair kits and replacement parts

Click here to check the repair kits for T22 fifth wheel hitch.

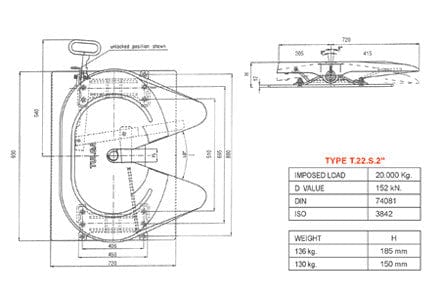

Technical Drawings:

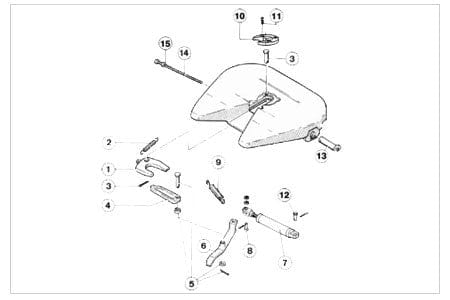

Part List:



Shipping information

We ship orders daily or next business day from our Santa Ana, CA or Atlanta, GA warehouses depending on the customer location and availability.

Returns & warranty

We offer 30 days to return for refund and 3 years limited warrany.
